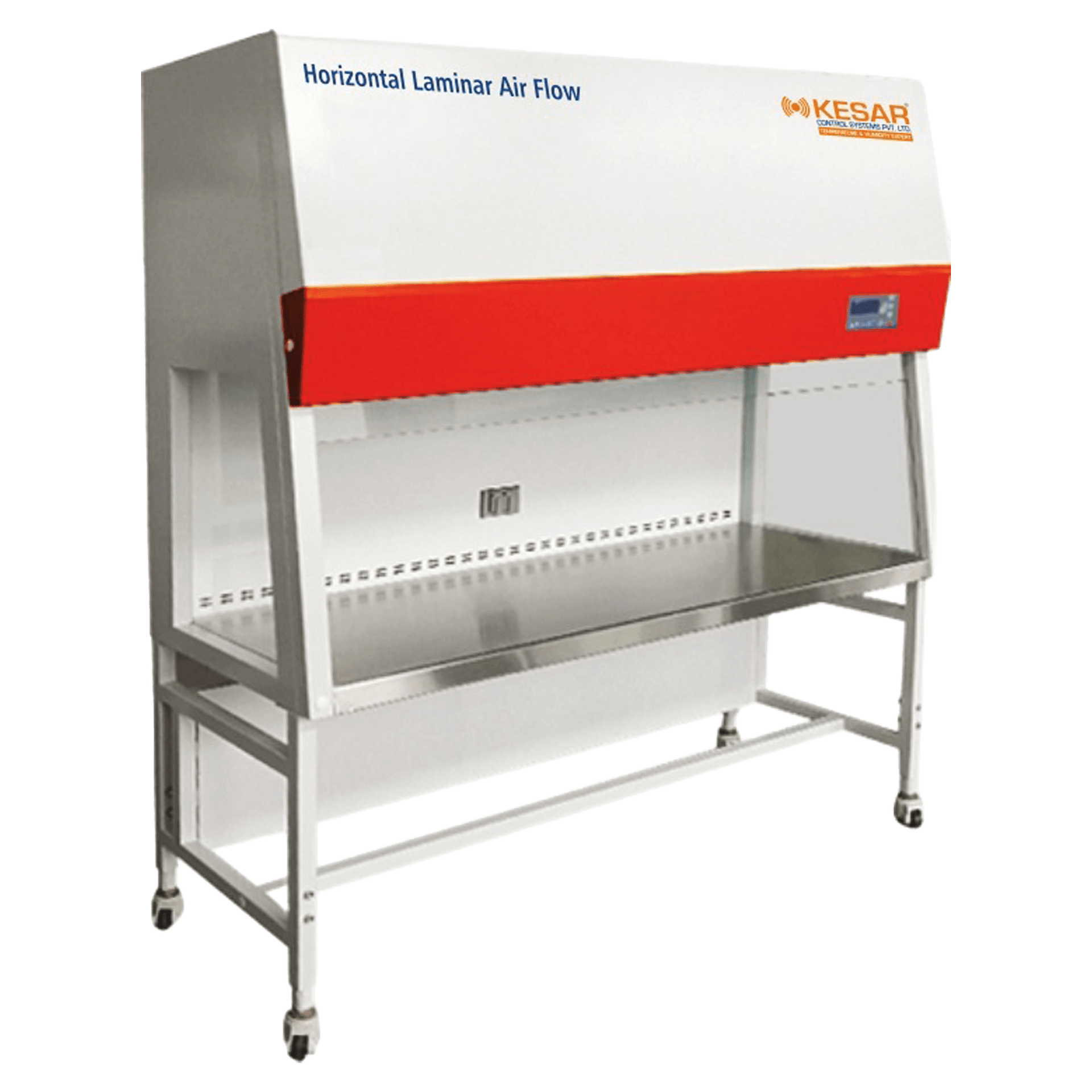

Horizontal Laminar Air Flow

Introduction

Kesar Control Systems manufactures high-quality Horizontal Laminar Air Flow (HLAF) units designed to provide a sterile and particle-free working environment for critical laboratory and pharmaceutical applications. The system supplies HEPA-filtered air horizontally across the work area, maintaining ISO Class 5 clean air conditions and protecting sensitive products from airborne contamination.

Construction & Design

  • Cabinet fabricated from Stainless Steel SS-304 / SS-316.
  • Mirror-finished stainless steel working surface.
  • Smooth internal corners to prevent particle accumulation.
  • Corrosion-resistant and easy-to-sanitize structure.
  • Transparent acrylic or glass side panels for visibility.
  • Designed according to GMP and cleanroom standards.

Filtration System

Primary Filtration:

Non-woven Pre-Filter (EU-04 / G4)

Efficiency: 95% down to 5 μm

Secondary Filtration:

Mini-Pleat HEPA Filter – H14 Grade

Efficiency: 99.997% for particles ≥0.3 μm

Control & Instrumentation

Feather-touch LED controller panel

Magnehelic differential pressure gauge

Digital hour meter

Blower ON/OFF control

UV lamp timer control

LED lighting control

Optional filter blockage alarm

Lighting System

Fluorescent / LED light with minimum 300–1000 lux illumination.

UV Germicidal Lamp for sterilization during idle periods.

Quick Contact

Get Solution

Contact Kesar Control today to learn more about their Products and get a quote.

Contact Now

Features

  • ISO Class 5 Cleanliness according to ISO 14644-1.
  • Horizontal unidirectional laminar airflow.
  • Mini - Pleat HEPA Filter H14 (99.99% efficiency at 0.3 µm).
  • Pre - Filter EU4 efficiency 95% at 5 µm.
  • Touch LED controller for blower, lighting and pressure display.
  • Magnehelic differential pressure gauge.
  • UV Germicidal lamp for sterilization.
  • LED / Fluorescent illumination for clear working visibility.
  • Low noise operation ≤ 65 dB.
  • GMP compliant design for pharmaceutical environments.

Applications

  • Pharmaceutical manufacturing.
  • Microbiology and biotechnology laboratories.
  • Sterile drug compounding.
  • Tissue culture and microbiological testing.
  • Electronics and semiconductor assembly.
  • Food and beverage quality control.

Technical Specification

Air Cleanliness ISO Class 5
Airflow Direction Horizontal
Air Velocity 0.45 ± 0.05 m/s
HEPA Filter Efficiency 99.997% at 0.3 μm
Pre-Filter Efficiency 95% at 5 μm
Noise Level ≤ 65 dB
Lighting Intensity ≥ 300 Lux
Power Supply Single Phase 220–230 V, 50 Hz
Material of Construction SS-304 / SS-316

Explore More

Similar Products

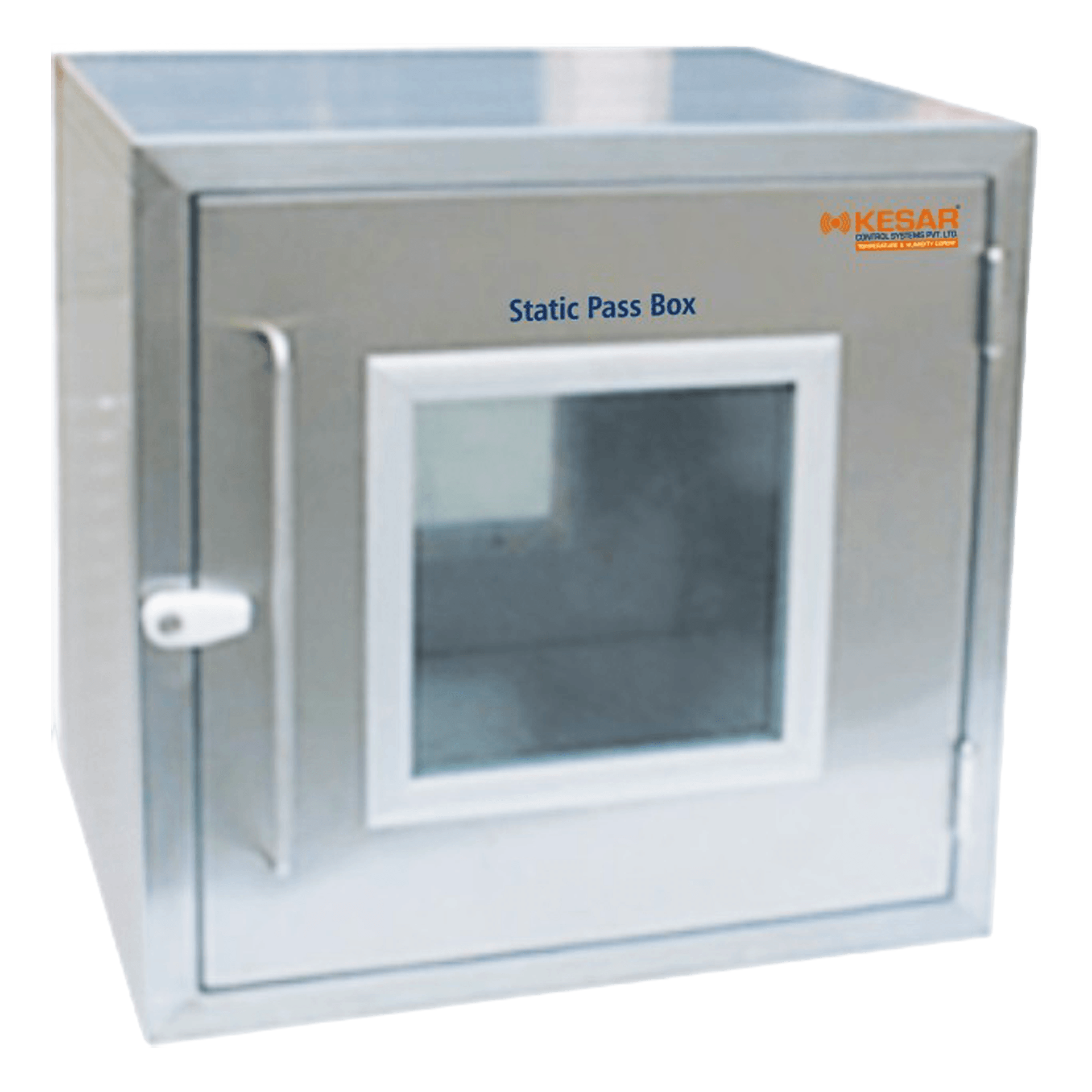

Static Pass Box

Kesar Control Systems offers high-quality Static Pass Boxes designed for safe and efficient material transfer between two areas of the same cleanliness classification. These chambers help reduce personnel movement and maintain cleanroom conditions, minimizing the risk of contamination.

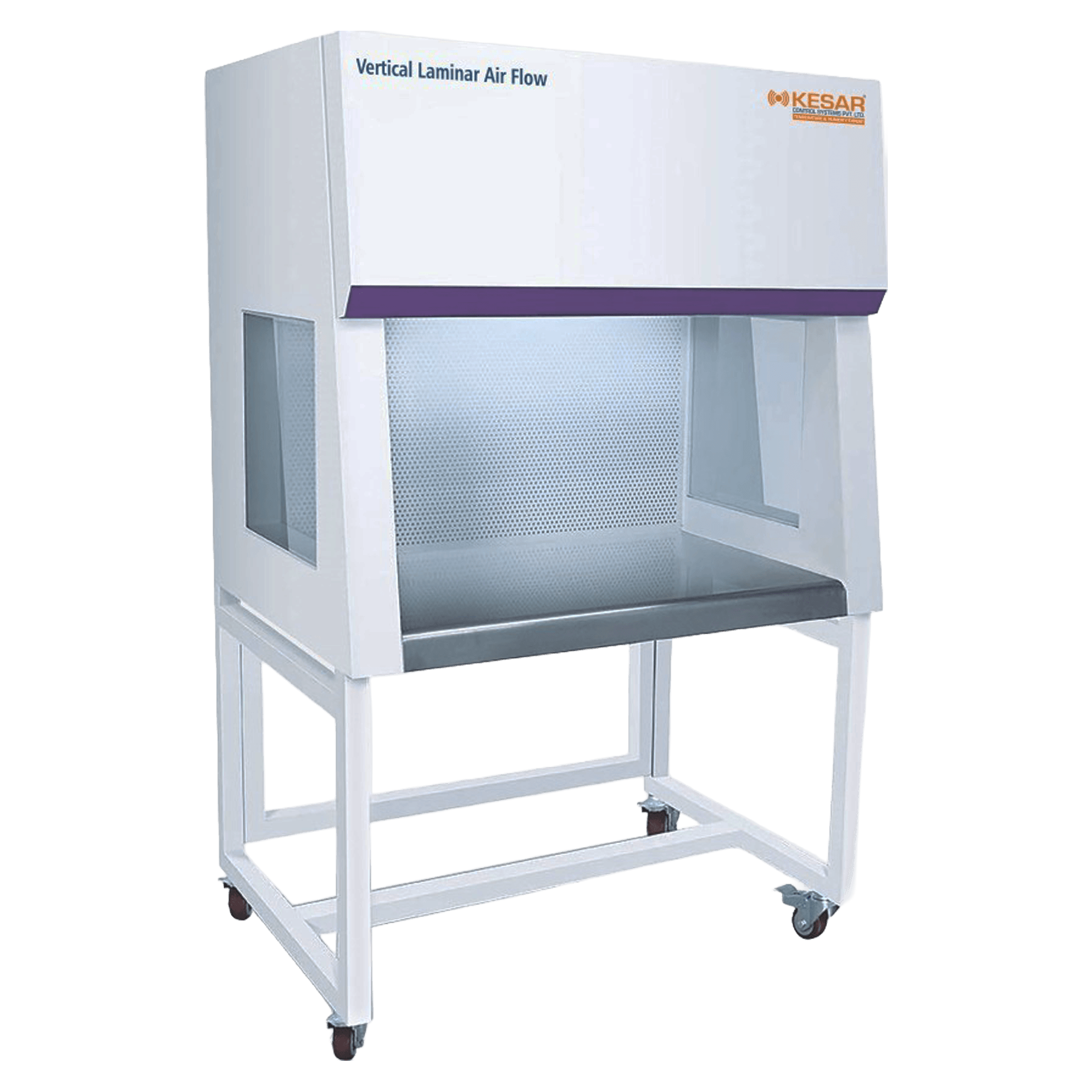

Vertical Laminar Air Flow

Kesar Control Systems manufactures high-quality Vertical Laminar Air Flow (VLF) units designed to provide a sterile and particle-free working environment for sensitive laboratory and pharmaceutical applications. The system delivers HEPA-filtered air vertically from top to bottom, creating a unidirectional airflow that protects products from airborne contamination. This controlled airflow sweeps particles away from the work surface and maintains ISO Class 5 clean air conditions.

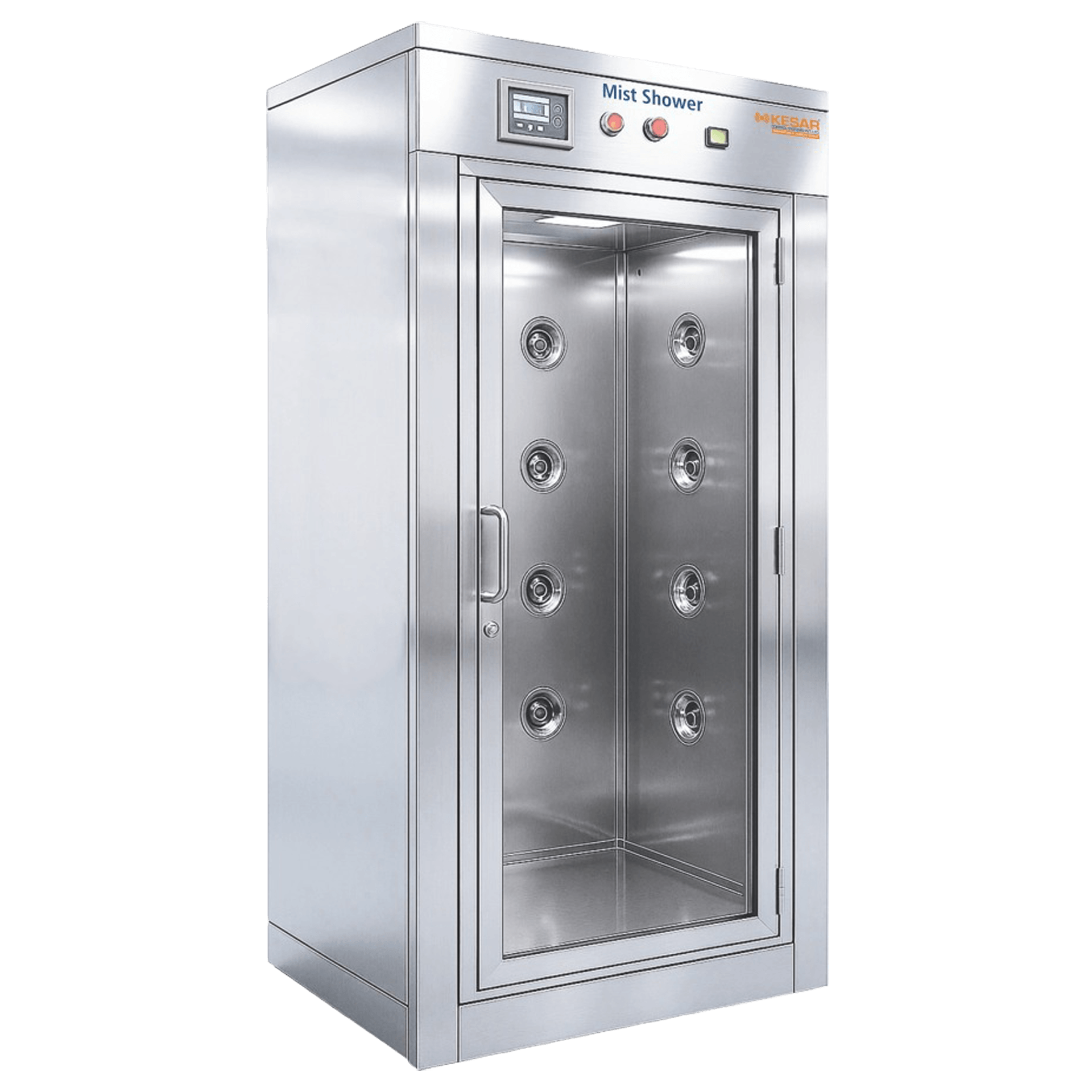

Mist Shower

Kesar Control Systems offers high-performance Mist Showers designed to remove dust, contaminants, and hazardous particles from personnel before entering or exiting controlled environments.

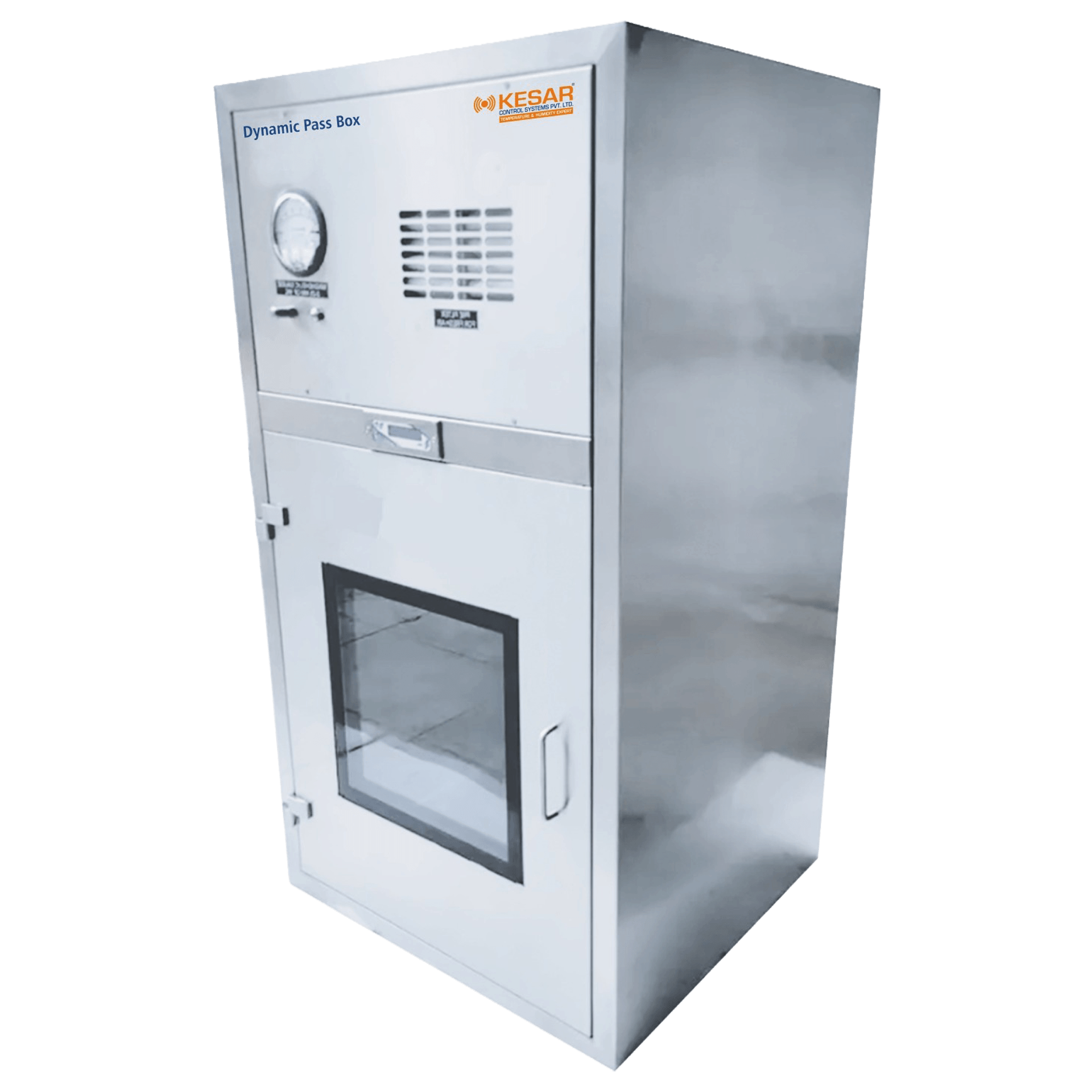

Dynamic Pass Box

Kesar Control System offers high-quality Dynamic Pass Boxes designed for safe and contamination-free material transfer between classified cleanroom areas. The system functions as an airlock chamber with HEPA-filtered air circulation, ensuring that the cleanliness of the controlled environment is maintained while transferring materials between areas with different cleanliness levels.

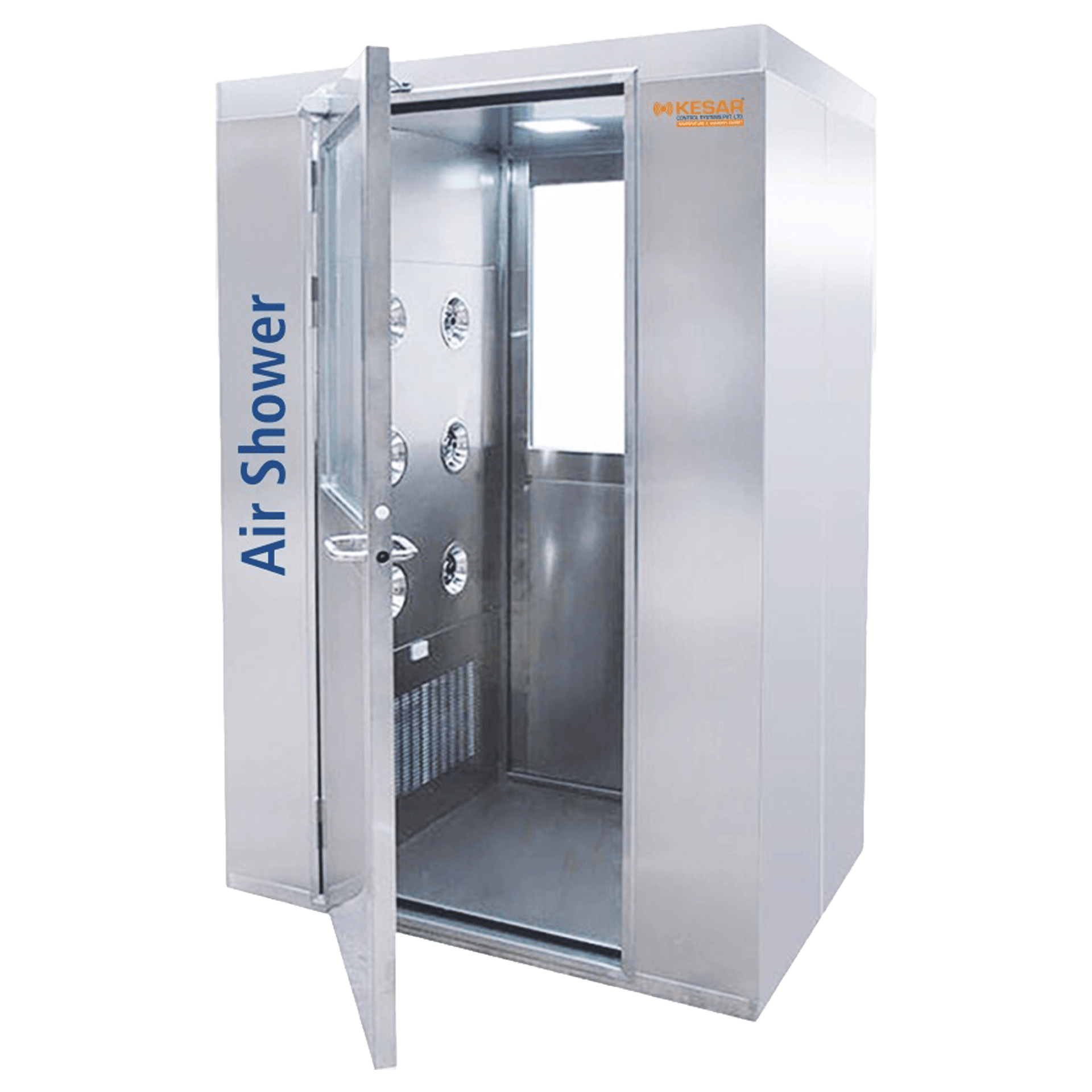

Air Shower
